iSTAR Pulsar status LEDs

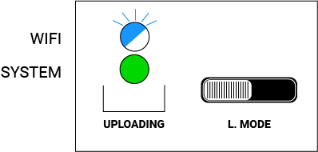

While uploading data, iSTAR Pulsar will display a solid Green system LED, and a pulsing Blue Wi-Fi LED:
Once all queued captures have been uploaded, the device will return to "Ready" status, showing two solid Green LEDs.
iSTAR Pulsar Mobile App

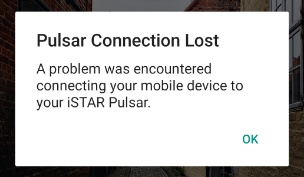

When a user commences uploading data from iSTAR Pulsar to VR.World by moving the mode switch to the Left, the unit immediately ceases emitting a Wi-Fi signal and connects to the Wi-Fi network that the user specified. As such, the mobile app/device will disconnect completely from iSTAR Pulsar:

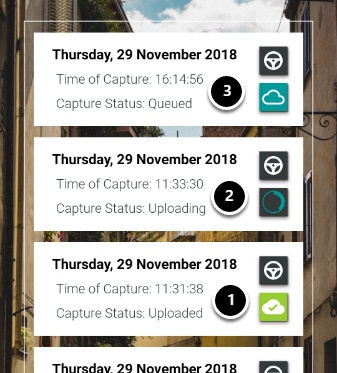

Users can however at this point connect their mobile device to the same Wi-Fi network that iSTAR Pulsar is using to upload data - with both devices connected to the same network, the mobile app will re-connect with the device, and users can observe the progress of their uploads within the capture manager page:
From top to bottom, the above captures are:
- Already uploaded to VR.World
- Currently uploading, approx 40% complete as shown by the progress icon in the bottom right
- Queued for upload, this capture will upload once the current one completes
When a capture begins uploading, it will also appear under the "Captures" section within VR.World.

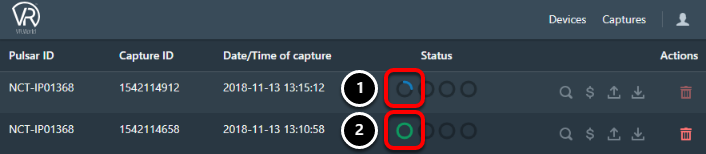

The first status icon against the capture, which denotes "Upload Status" will spin in blue while upload is in progress (figure 1 below), and show solid green once upload is complete (figure 2 below):
